Decorate an ellipsized diagram label

Keep a diagram label's complete text while fitting its visible text into a limited advance width. Add a separate bitmap outline, then save and reopen the scene with both image assets. Try the diagram label.

This guide uses @barocss/canvas2d version 0.0.0-experimental at local source provider 8fc5d6c46776f750d1c3a4222e255aea5d6aaaf7. Both rasterizeBrowserEllipsizedText and outlineImageAsset are public exports there. Use that matching source package with a TypeScript-capable browser bundler. The earlier rectangle and Unicode examples keep their separate source profiles; package availability does not establish npm publication.

Create the label and its decoration

Use this HTML as the host page and the following module as main.ts. The browser receives the JavaScript produced by your bundler.

<div id="stage"><canvas style="width:320px;height:200px"></canvas></div>
<label>Full label
  <input id="text" value="Mounting plate dimensions and clearance" maxlength="128">
</label>
<label>Maximum advance <input id="width" type="number" value="200"></label>
<button id="apply" type="button">Apply label</button>
<button id="save" type="button">Save diagram JSON</button>
<label>Open diagram JSON <input id="open" type="file" accept=".json,application/json"></label>
<pre id="status" aria-live="polite"></pre>
<script type="module" src="./main.ts"></script>

import {
  createCanvas2D, createDisplayTree, createDisplayTreeFromScene,
  rasterizeBrowserEllipsizedText, outlineImageAsset, Canvas2DError
} from '@barocss/canvas2d';
import type {
  Canvas2DRenderer, DisplayTree, Scene, ImageAssetInput
} from '@barocss/canvas2d';
import { serializeCanvasDocument, stageCanvasDocument } from '@barocss/canvas2d/document';

const stage = document.querySelector<HTMLDivElement>('#stage')!;
const textInput = document.querySelector<HTMLInputElement>('#text')!;
const widthInput = document.querySelector<HTMLInputElement>('#width')!;
const applyButton = document.querySelector<HTMLButtonElement>('#apply')!;
const saveButton = document.querySelector<HTMLButtonElement>('#save')!;
const openInput = document.querySelector<HTMLInputElement>('#open')!;
const status = document.querySelector<HTMLPreElement>('#status')!;
const controls = [textInput, widthInput, applyButton, saveButton, openInput];
const font = '24px monospace', dpr = 2, radius = 3;
const outlineColor: [number, number, number, number] = [.1, .75, 1, 1];
const options = {
  logicalSize: { width: 320, height: 200 }, dpr,
  backgroundColor: [.063, .094, .125, 1] as [number, number, number, number]
};
const identity = () => ({ x: 0, y: 0, scaleX: 1, scaleY: 1, rotation: 0 });
type Preparation = {
  font: string | null; maxWidth: number | null; displayText: string | null;
  visibleTextEnd: number | null; truncated: boolean | null; rasterDPR: number | null;
  outlineRadius: number | null; outlineColor: number[] | null;
};
type Session = {
  canvas: HTMLCanvasElement; renderer: Canvas2DRenderer;
  tree: DisplayTree; preparation: Preparation;
};
let current: Session | null = null;
let closed = false, busy = false;
let downloadURL: string | null = null;

function freshCanvas() {
  const canvas = document.createElement('canvas');
  canvas.style.cssText = 'width:320px;height:200px';
  return canvas;
}
function requireLive() {
  if (closed) throw new Error('The diagram host is closed');
}

async function prepareLabel(text: string, maxWidth: number): Promise<Session> {
  // Readiness includes the three ASCII dots used by a truncated candidate.
  await document.fonts.load(font, text + '...');
  await document.fonts.ready;
  requireLive();
  const raster = rasterizeBrowserEllipsizedText({
    text, font, atlasId: 'LabelAtlasA', maxWidth, dpr
  });
  const outline = outlineImageAsset(raster.asset, radius, outlineColor);
  const tree = createDisplayTree('DiagramLabelScene');
  const parent = tree.createContainer({
    id: 'LabelGroup', layer: 0,
    transform: { x: 40, y: 104, scaleX: 1, scaleY: 1, rotation: .08 }
  });
  const quad = raster.layout.glyphs[0];
  parent.addChild(tree.createSprite({
    id: 'OutlineSprite', layer: 0, imageId: 'OutlineAtlasA',
    transform: { ...identity(), x: quad.x, y: raster.layout.baseline + quad.y },
    width: quad.width, height: quad.height,
    sourceRect: { ...quad.sourceRect }, anchorX: 0, anchorY: 0,
    opacity: 1, sampling: 'nearest', hitMode: 'none'
  }));
  parent.addChild(tree.createGlyphRun({
    id: 'OriginalGlyph', layer: 1, transform: identity(), ...raster.layout
  }));
  tree.stage.addChild(parent);
  const canvas = freshCanvas();
  const renderer = createCanvas2D(canvas, options);
  try {
    renderer.setImageAsset(raster.layout.atlasId, raster.asset);
    renderer.setImageAsset('OutlineAtlasA', outline);
    renderer.updateScene(tree.snapshot());
    renderer.render();
  } catch (error) {
    renderer.dispose();
    throw error;
  }
  return { canvas, renderer, tree, preparation: {
    font: raster.font, maxWidth: raster.maxWidth, displayText: raster.displayText,
    visibleTextEnd: raster.visibleTextEnd, truncated: raster.truncated,
    rasterDPR: raster.dpr, outlineRadius: radius, outlineColor: [...outlineColor]
  } };
}

function inspectLabel(session: Session) {
  const glyph = session.tree.get('OriginalGlyph');
  if (!glyph || glyph.kind !== 'glyphRun') throw new Error('Expected the diagram glyphRun');
  const data = glyph.data, quad = data.glyphs[0];
  const asset = session.renderer.getImageAsset(data.atlasId);
  if (!asset) throw new Error('Missing label atlas');
  // Find actual original-label ink. Never use decoration alpha as label ink.
  let pixel = -1, strongestAlpha = 0;
  for (let index = 0; index < asset.width * asset.height; index++) {
    const alpha = asset.pixels[index * 4 + 3];
    if (alpha > strongestAlpha) { strongestAlpha = alpha; pixel = index; }
  }
  if (pixel < 0) throw new Error('No label ink');
  const px = pixel % asset.width, py = Math.floor(pixel / asset.width);
  const local = {
    x: quad.x + (px + .5 - quad.sourceRect.x) / quad.sourceRect.width * quad.width,
    y: data.baseline + quad.y + (py + .5 - quad.sourceRect.y) / quad.sourceRect.height * quad.height
  };
  const point = session.renderer.worldToViewport(glyph.toWorld(local));
  const hit = session.renderer.hitTest(point);
  if (hit?.id !== glyph.id || hit.kind !== 'glyphRun') throw new Error('Expected original label hit');
  const target = session.tree.get(hit.id);
  const semanticText = target?.kind === 'glyphRun' ? target.data.text : null;
  return { hit, point, semanticText, textRange: [quad.textStart, quad.textEnd],
    preparation: session.preparation };
}

function adopt(next: Session) {
  try {
    requireLive();
    const observation = inspectLabel(next);
    const prior = current;
    stage.replaceChildren(next.canvas);
    current = next;
    status.textContent = JSON.stringify(observation, null, 2);
    prior?.renderer.dispose();
  } catch (error) {
    next.renderer.dispose();
    throw error;
  }
}

async function exclusively(operation: () => Promise<void>) {
  if (busy || closed) return;
  busy = true;
  controls.forEach(control => { control.disabled = true; });
  try { await operation(); }
  catch (error) {
    if (!closed) status.textContent = error instanceof Canvas2DError ? error.code : String(error);
  } finally {
    busy = false;
    if (!closed) controls.forEach(control => { control.disabled = false; });
  }
}
function apply() {
  const text = textInput.value, maxWidth = Number(widthInput.value);
  void exclusively(async () => adopt(await prepareLabel(text, maxWidth)));
}

function save() {
  void exclusively(async () => {
    if (!current) throw new Error('Create a diagram first');
    const snapshot = current.tree.snapshot();
    const assets = new Map<string, ImageAssetInput>();
    function capture(nodes: Scene['nodes']) {
      for (const node of nodes) {
        const id = node.kind === 'glyphRun' ? node.atlasId :
          node.kind === 'image' ? node.imageId : null;
        if (id !== null && !assets.has(id)) {
          const asset = current!.renderer.getImageAsset(id);
          if (!asset) throw new Error('Missing document asset ' + id);
          assets.set(id, asset);
        }
        if (node.kind === 'group' || node.kind === 'frame') capture(node.children);
      }
    }
    capture(snapshot.nodes); // Both copied assets exist before any await.
    const text = await serializeCanvasDocument(snapshot, id => assets.get(id) ?? null);
    requireLive();
    if (downloadURL) URL.revokeObjectURL(downloadURL);
    downloadURL = URL.createObjectURL(new Blob([text], { type: 'application/json' }));
    const link = document.createElement('a');
    link.href = downloadURL; link.download = 'diagram-label.canvas.json';
    document.body.append(link); link.click(); link.remove();
  });
}

function open() {
  const file = openInput.files?.[0];
  if (!file) return;
  void exclusively(async () => {
    try {
      if (file.size > 48 * 1024 * 1024) throw new Error('Diagram document exceeds 48 MiB');
      const text = await file.text();
      requireLive();
      const canvas = freshCanvas();
      const staged = await stageCanvasDocument(text, canvas, options);
      let next: Session;
      try {
        requireLive();
        next = { canvas, renderer: staged.renderer,
          tree: createDisplayTreeFromScene(staged.scene), preparation: {
            font: null, maxWidth: null, displayText: null, visibleTextEnd: null,
            truncated: null, rasterDPR: null, outlineRadius: null, outlineColor: null
          } };
      } catch (error) { staged.renderer.dispose(); throw error; }
      adopt(next);
    } finally { openInput.value = ''; }
  });
}

applyButton.addEventListener('click', apply);
saveButton.addEventListener('click', save);
openInput.addEventListener('change', open);
window.addEventListener('pagehide', () => {
  closed = true;
  applyButton.removeEventListener('click', apply);
  saveButton.removeEventListener('click', save);
  openInput.removeEventListener('change', open);
  current?.renderer.dispose();
  if (downloadURL) URL.revokeObjectURL(downloadURL);
}, { once: true });
apply();

These functions are browser host glue around the public package APIs. They allow one asynchronous operation at a time and refuse late adoption after the host closes. A fresh candidate renderer is disposed on failure; the accepted session is replaced only after rendering and inspection. Setting maximum advance to 0 should report INVALID_SCENE while keeping the previous canvas. Device or context loss can still prevent rendering; retained CPU data does not guarantee recoverable pixels on every device.

Keep semantic text separate from visible text

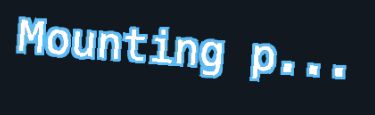

The original label is Mounting plate dimensions and clearance: 39 printable ASCII code units. The initial maximum advance is 200 logical pixels. Read the actual displayText returned by the browser; font metrics determine which prefix fits. Do not replace layout.text with that shortened string.

rasterizeBrowserEllipsizedText(options: BrowserEllipsizedTextOptions): BrowserEllipsizedTextRaster requires text, font, atlasId and maxWidth; dpr is optional with default 1. It has no textPolicy option. Text must contain 1..128 printable ASCII units with a nonspace character. Unicode text and the Unicode character … are outside this entry's contract; the suffix is three ASCII dots, ....

If the complete text's measured advance fits, displayText equals the original, truncated is false and visibleTextEnd is 39. Otherwise the browser measures every original prefix of length 0..38 plus ... and chooses the greatest fitting prefix length. Kerning can make widths nonmonotonic. If no candidate fits, the helper throws ASSET_LIMIT.

visibleTextEnd excludes the three dots. displayText can contain up to 130 units, but layout.text remains the complete original. The layout still has one whole-label quad with range 0..39. It provides no per-character caret geometry or mapping from a dot to an omitted character.

The width constraint is measured advance, not ink bounds. Ink overhang and the rasterizer's padding can extend beyond 200 logical pixels. Font measurement and readiness come from browser APIs; the helper does not identify the matched typeface or guarantee font coverage or pixel parity.

Align the outline and preserve the glyph hit

outlineImageAsset(asset: ImageAssetInput, radius: number, color: Color): ImageAssetInput returns only the outline bitmap. The original label remains a separate asset and glyphRun. Both outputs are mutable owned data; renderer asset registration copies their pixels.

The outline uses a square neighborhood of physical bitmap pixels. Its alpha is Math.round((maximumNeighborhoodAlpha - centreAlpha) * color[3]). Nonzero output pixels use constant RGB Math.round(255 * color[channel]); zero-alpha output pixels have zero RGB. The input pixels remain unchanged. It is a bitmap operation, not a vector text stroke.

The output has the same width and height as the input. Radius 3 at raster DPR2 corresponds to about 1.5 local logical pixels before the parent transform. It does not enlarge the canvas or add padding; the outline can clip at image edges. Radius 8 can exceed the existing text padding.

The sprite uses the actual glyph quad's position, logical extent and full source rectangle. Both children share LabelGroup, whose translation is (40,104) and whose rotation is .08 radians. Applying a transform to only one child would break alignment. OriginalGlyph is above the outline at layer 1; the outline is layer 0 with hitMode:'none'.

The inspection finds a nonzero-alpha pixel in the original atlas, maps its centre through the quad, calls glyph.toWorld, then renderer.worldToViewport, and asks hitTest. The hit identifies OriginalGlyph as a glyphRun; reading that handle's data.text recovers the complete semantic label. Decoration never supplies a text identity or takes its own hit. The public renderer applies its existing alpha-based GlyphRun hit rules. Sampling an ink pixel only chooses a probe point; it supplies no character selection or text editing.

Save a real document and reopen it

Click Save diagram JSON to download diagram-label.canvas.json. Then use Open diagram JSON to choose that downloaded file. This file workflow is separate from the Unicode example's memory-only Save/Restore actions.

Save captures the complete scene and both referenced asset copies before the first await. This prevents asynchronous digest work from reading label bytes from one edit and outline bytes from another. serializeCanvasDocument stores semantic text, layout and the label/outline RGBA bytes together.

Open stages the file on a fresh canvas through stageCanvasDocument, reconstructs new handles with createDisplayTreeFromScene, and swaps the visible canvas only after success. It does not call font loading, text rasterization or outline preparation. The file's scene and copied assets are authoritative; old handles and listeners are not rebound.

The document does not store font, maximum advance, derived display text, visible-prefix end, truncation, raster DPR, outline radius or outline color settings. The host marks all these preparation fields null after Open. It does not infer them from saved pixels. The renderer's display DPR remains explicitly configured at 2. A later Apply label prepares a new candidate from the input controls and the explicit current font/DPR/outline profile.

Document serialization requires browser byte encoding and SHA-256 support. Its separate limits are 16 referenced assets, 32 MiB RGBA8 payload and 48 MiB serialized document text. Background color is host renderer configuration and is supplied again. A screenshot or PNG cannot reconstruct this editable scene and asset table.

Bounds and errors

Operation	Bounds	Errors
Ellipsis input	Ordinary own data options; printable ASCII 1..128; finite maxWidth in (0,1e6]; DPR [1,4]; font at most 256 units, no CR/LF/NUL	INVALID_SCENE; invalid atlas ID is INVALID_ASSET
Ellipsis browser work	Ready font; finite metrics/ink edges within ±1e6; atlas at most 1024×256 backing pixels and 1 MiB RGBA8	UNSUPPORTED_FEATURE, INVALID_ASSET, ASSET_LIMIT; no fitting prefix is ASSET_LIMIT
Outline input	Exact own width/height/pixels; integer dimensions 1..4096; ordinary nonshared Uint8Array with exactly width*height*4 bytes	INVALID_ASSET
Outline settings	Required integer radius 1..8; dense ordinary Color4 with finite channels [0,1]; negative zero refused for dimensions/radius/color	INVALID_ASSET
Outline budget	Input and same-size output each at most 1 MiB	ASSET_LIMIT

Ellipsis options refuse getters, hidden fields, symbols, unknown fields and foreign/null prototypes. Outline asset records permit ordinary or null prototypes, but still require exact enumerable data fields; pixel metadata overrides, shared buffers and typed-array subclasses are refused. The outline has no DOM, GPU or automatic asset-registration step. The rasterizer releases its scratch canvas on success and failure. Dispose owned renderers and remove host listeners when closing the page.
